L-1C

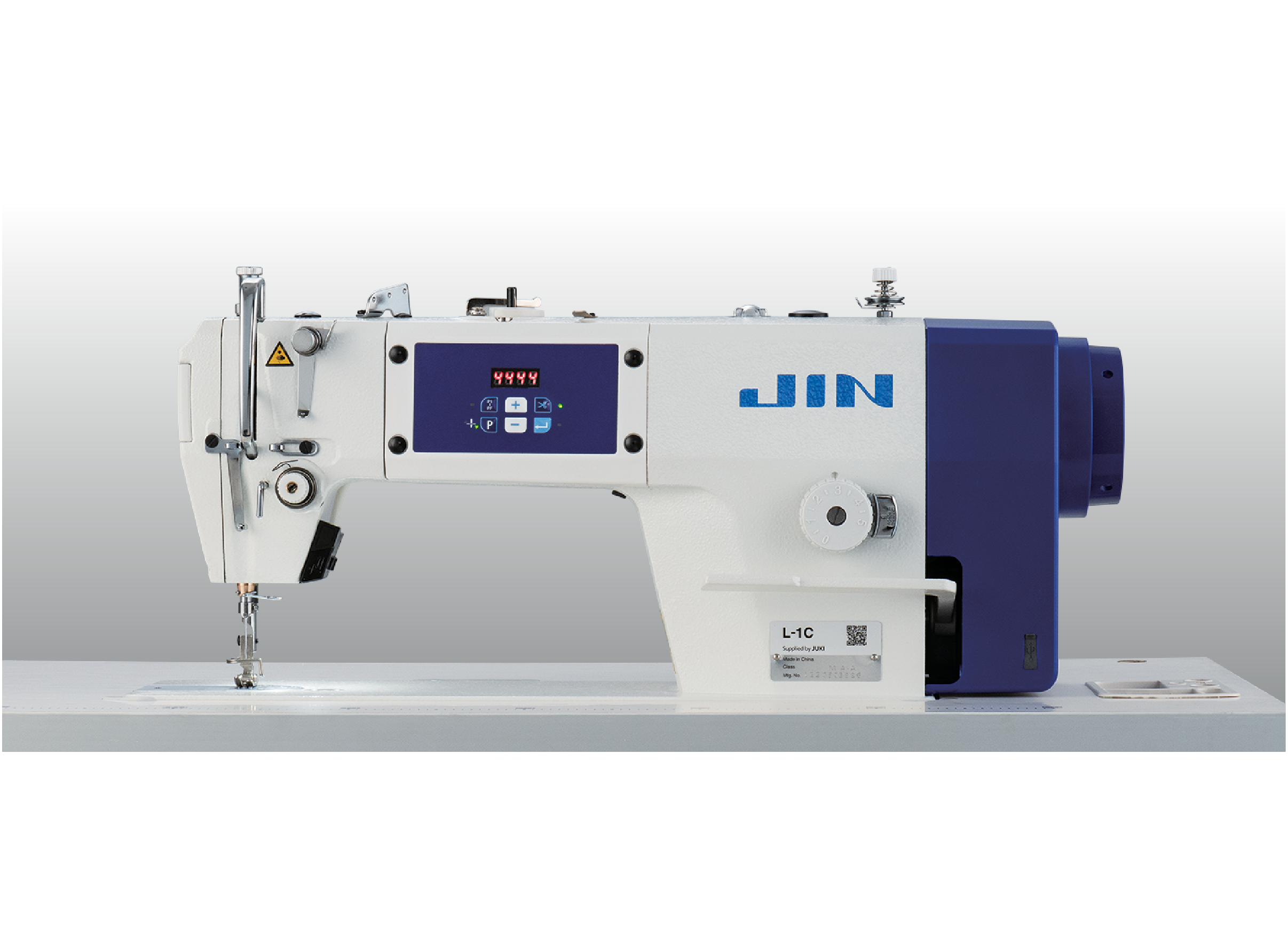

Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer
Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer
Digital feed control motor is installed with direct-drive servomotor. The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1 series adopt the direct drive system.
Model Name |
Application |
Max. Sewing Speed |
Max. Stitch Length |
Lift of Presser Foot |
Needle |
Lubrication |
Lubricating Oil |
Power Consumption |
Power Requirement |
|---|---|---|---|---|---|---|---|---|---|
| L-1C-M | Medium-weight | 4,500sti/min* | 5 mm | By hand: 5.0mm / By knee: 13mm | DB×1 (#14) #11-#18 | Automatic | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | 480VA | Single-phase 220V/Single-phase 110V |
| L-1C-H | Heavy-weight | 3,500sti/min* | 5 mm | By hand: 5.0mm / By knee: 13mm | DP×5 (#21) #16-#21 | Automatic | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | 480VA | Single-phase 220V/Single-phase 110V |

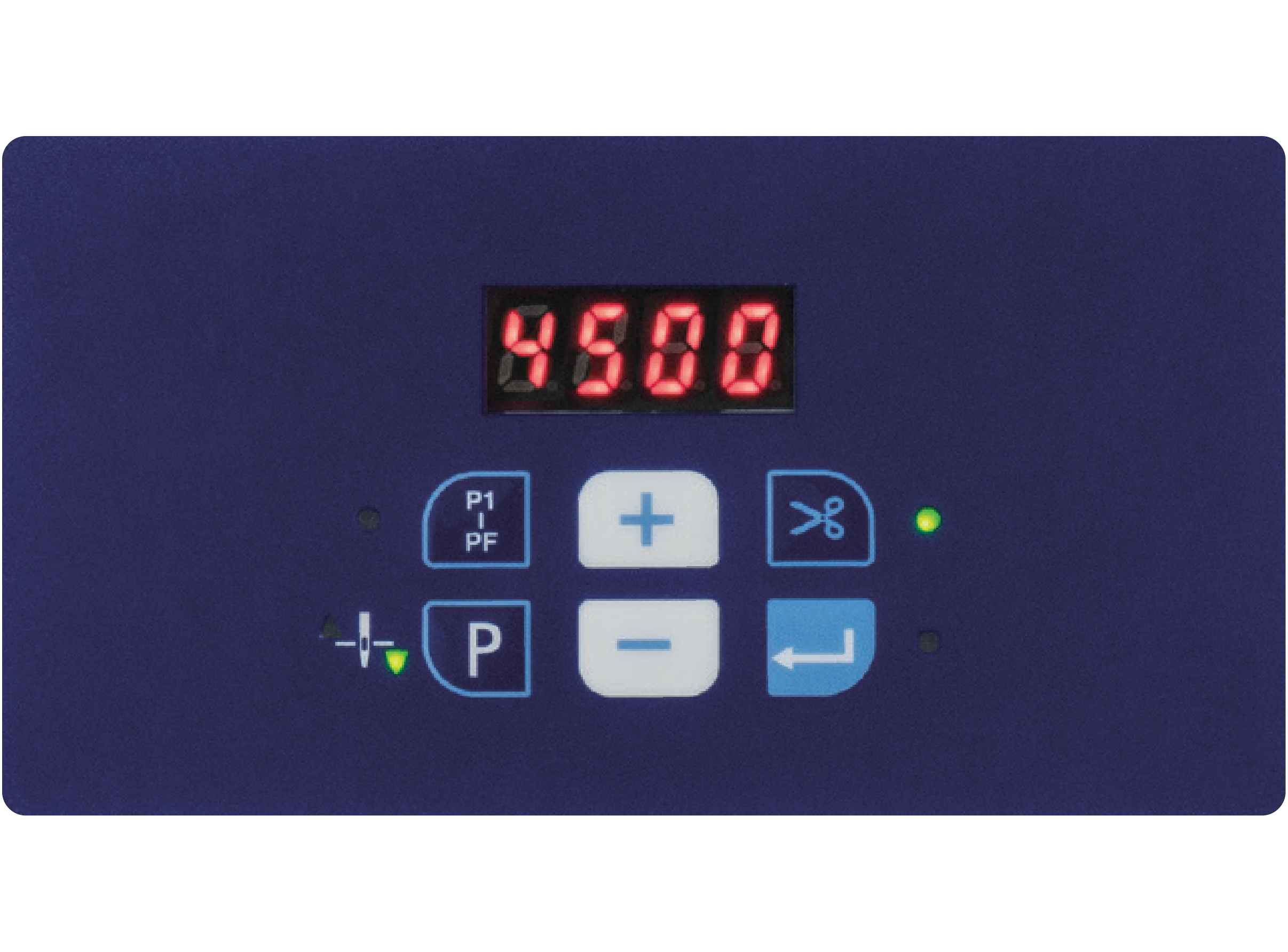

The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1C series adopt the direct drive system. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, responsiveness. Thereby demonstrating improved.

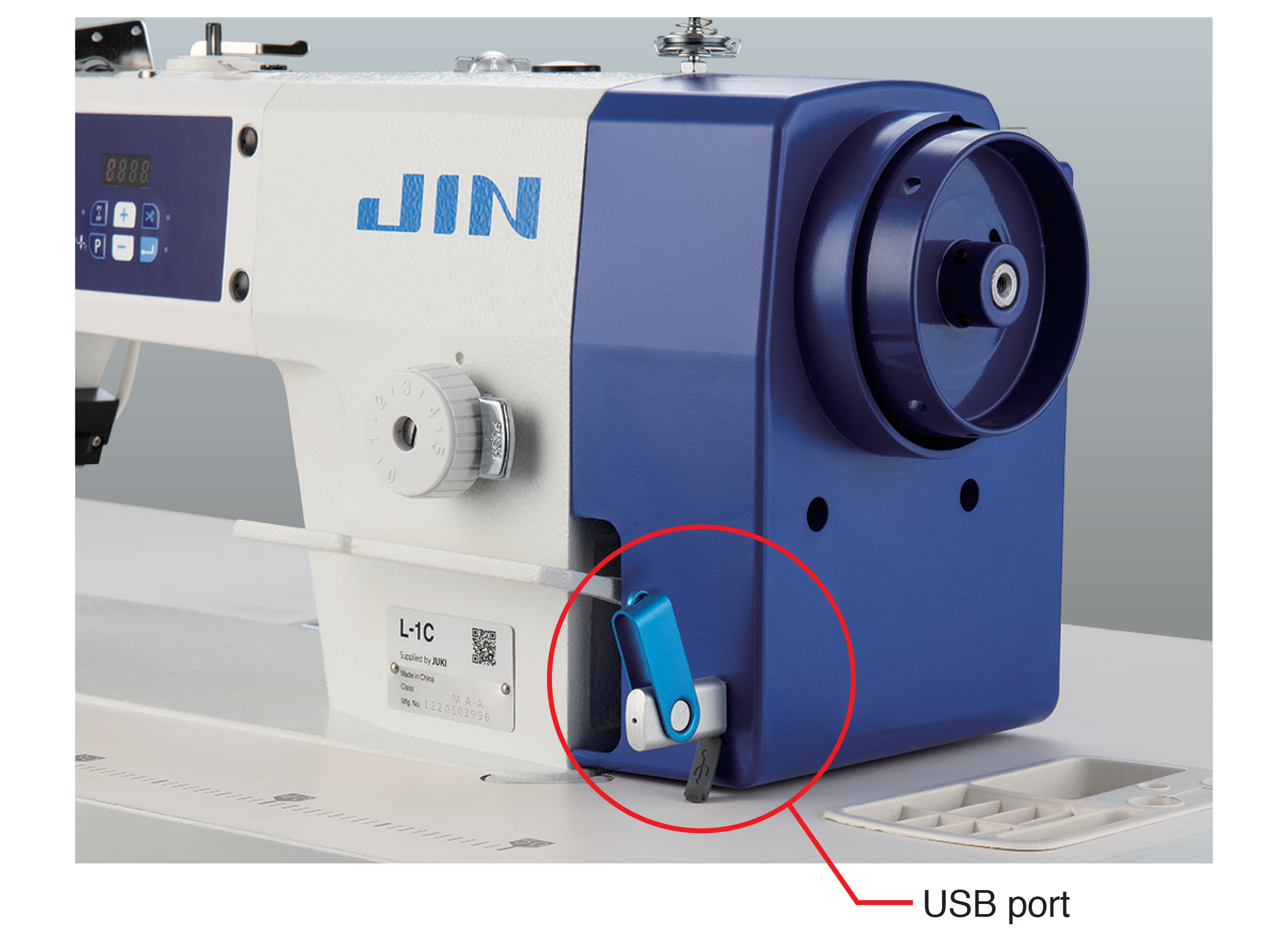

The L-1C series is equipped as standard with a USB port that can be used to charge smartphones, etc.
Since the sewing machine has no V-belt, the operator needs neither to clean up shavings from the V-belt, nor adjust the V-belt tension.

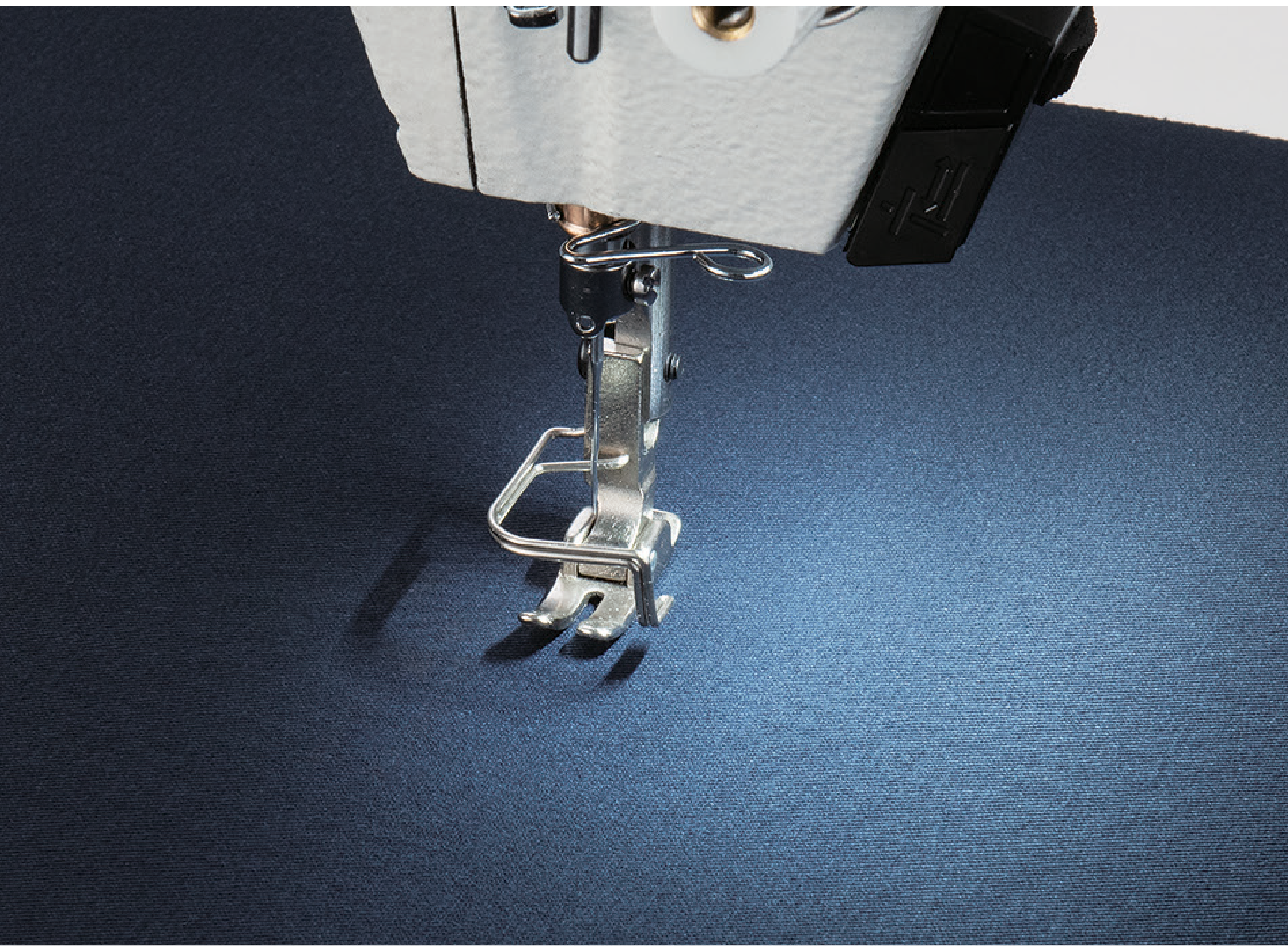

The LED light is located on the underside of the arm jaw. (ON-OFF type) It reduces operator fatigue and improves work efficiency. It is provided as standard for all models ofthe L-1C Series.
The machine adopts a single-blade drive rotary thread-trimming mechanism, so it is easy to maintain.
